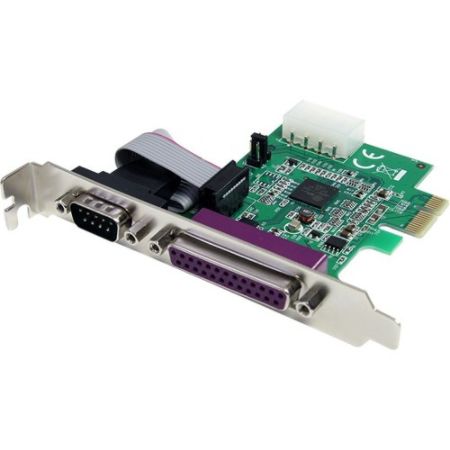

StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART Item # 247138
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
247138
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The PEX1S1P952 1S1P native PCI Express parallel/serial combo card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port.The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design.This 1-port serial/1-port parallel card offers compatibility with a broad range of operating systems, for easy integration into mixed environments.
Product Details
| Item # | 247138 |
| OfficeMax # | 23568667 |
| Manufacturer # | KE2844 |
| maximum data transfer rate | 1.50 Mbit/s Parallel Port; 115.20 kbit/s Serial Port |
| height | 2.6 in |
| Parallel Port Modes | SPP; ECP; EPP |
| thickness | 470 mil |
| Number of Parallel Ports (External) | 1 |
| width | 4.7 in |
| package contents | 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART; 2 x Low Profile Installation Bracket; 1 x Driver CD; 1 x Instruction Manual |
| depth | 3.1 in |
| Product Name | 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART |
| manufacturer | StarTech.com |
| Host Interface | PCI Express x1 |
| weight | 2.12 oz |
| brand name | StarTech |
| Card Height | Dual-profile |
| UART Type | 16950 |
| Number of Serial Ports (External) | 1 |
| Platform Supported | PC |
| form factor | Plug-in Card |
| warranty length | 2-year limited |
| Show More ▾ |
